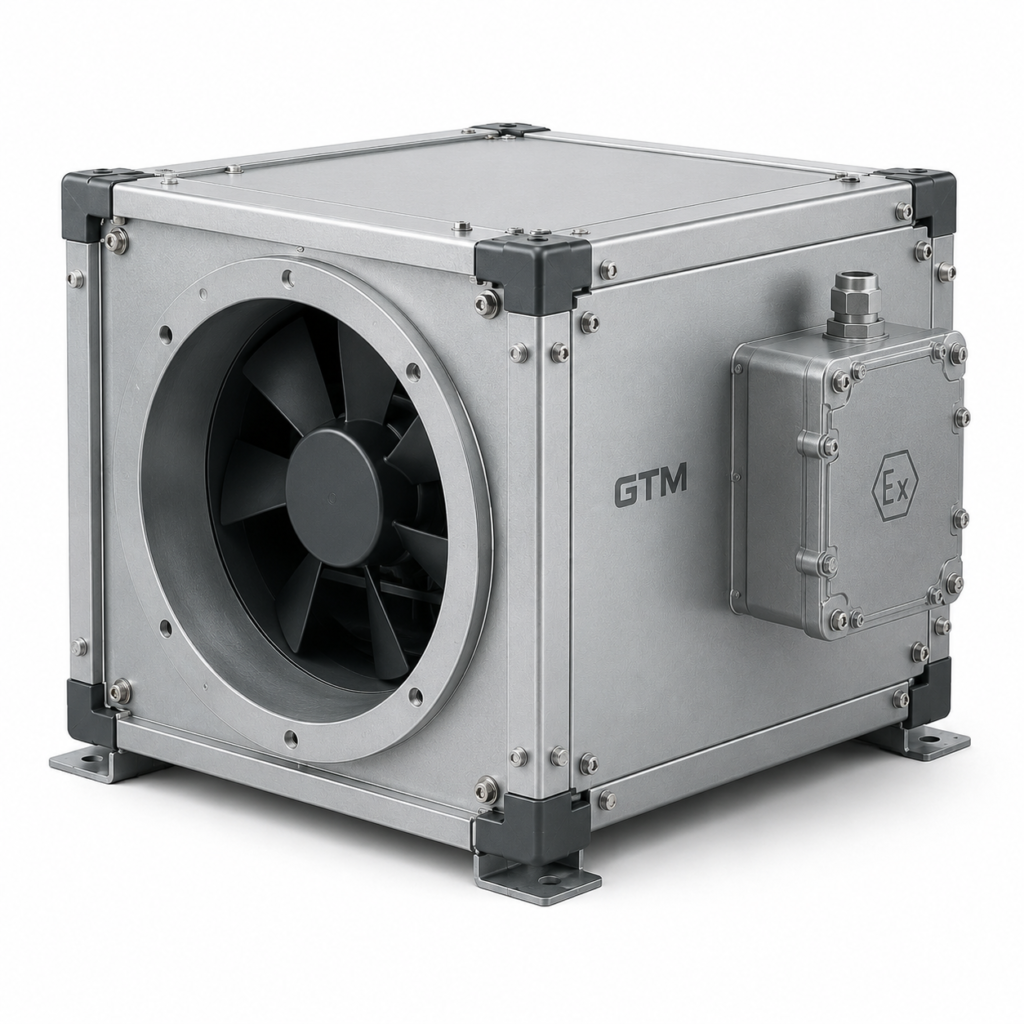

GTM GIX Series Explosion-Proof Inline Duct Fan
Explosion-proof inline duct fan for hazardous area ventilation and industrial exhaust. Sizes 200–630 mm with spark-resistant construction.
| Brand | GTM - German Technology Motors |
| Size_Range | 200-630 mm |
| Safety | Explosion-proof / spark-resistant option |
| Mounting | Inline duct |
Performance Data
Technical Specifications
| Model Size | Diameter (Ø mm) | Max Airflow (m³/h) | Max Pressure (Pa) | Sound Power (dB(A)) |
|---|---|---|---|---|
| GTM-GIX-200 | 200 | 950 | 320 | 58 |
| GTM-GIX-250 | 250 | 1,550 | 430 | 62 |
| GTM-GIX-315 | 315 | 2,700 | 570 | 66 |
| GTM-GIX-355 | 355 | 3,900 | 690 | 70 |
| GTM-GIX-400 | 400 | 5,600 | 820 | 74 |
| GTM-GIX-450 | 450 | 7,600 | 980 | 78 |
| GTM-GIX-500 | 500 | 10,200 | 1,150 | 82 |
| GTM-GIX-630 | 630 | 18,500 | 1,450 | 88 |
* Values are nominal and subject to manufacturing tolerances. Consult GTM technical support for specific duty points or operating conditions.
Where It’s Used
Key Applications
For safe extraction from areas requiring explosion-proof or spark-resistant ventilation equipment.
HAZARDOUS AREAS
BATTERY ROOMS
CHEMICAL STORAGE
