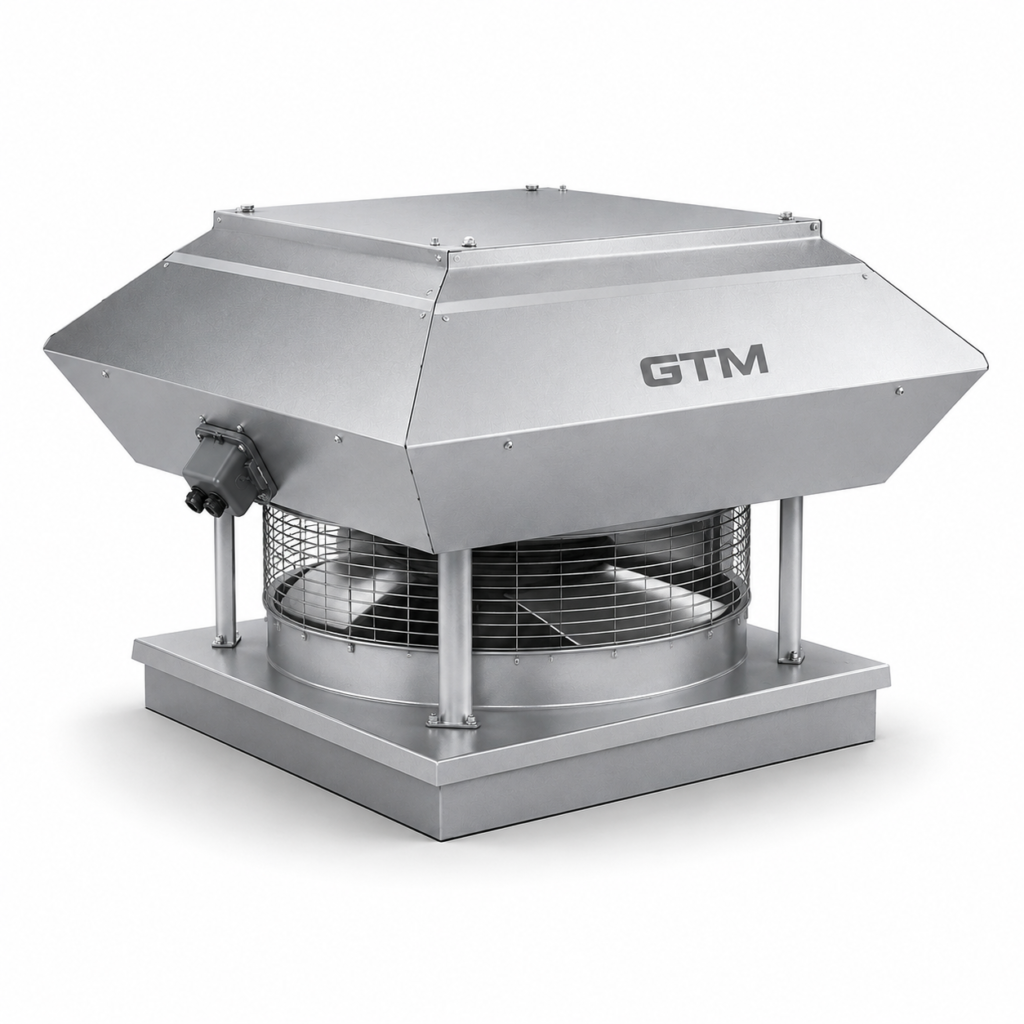

GTM RVH Series High Temperature Roof Smoke Extract Fan
High-temperature roof smoke extract ventilator for emergency exhaust and car park ventilation. Sizes 400–1000 mm.
| Brand | GTM - German Technology Motors |
| Size_Range | 400-1000 mm |
| Duty | F300/F400 smoke extract |
| Mounting | Roof curb |
Performance Data
Technical Specifications
| Model Size | Diameter (Ø mm) | Max Airflow (m³/h) | Max Pressure (Pa) | Sound Power (dB(A)) |
|---|---|---|---|---|
| GTM-RVH-400 | 400 | 5,600 | 230 | 69 |
| GTM-RVH-450 | 450 | 7,800 | 280 | 72 |
| GTM-RVH-500 | 500 | 10,800 | 340 | 75 |
| GTM-RVH-560 | 560 | 15,000 | 410 | 78 |
| GTM-RVH-630 | 630 | 21,500 | 500 | 81 |
| GTM-RVH-710 | 710 | 30,500 | 620 | 85 |
| GTM-RVH-800 | 800 | 42,000 | 760 | 88 |
| GTM-RVH-900 | 900 | 56,000 | 900 | 92 |
| GTM-RVH-1000 | 1,000 | 73,500 | 1,080 | 96 |
* Values are nominal and subject to manufacturing tolerances. Consult GTM technical support for specific duty points or operating conditions.
Where It’s Used
Key Applications
For roof-mounted smoke control, emergency exhaust and hot air extraction from industrial and car park buildings.
SMOKE EXTRACT
CAR PARKS
INDUSTRIAL SAFETY
