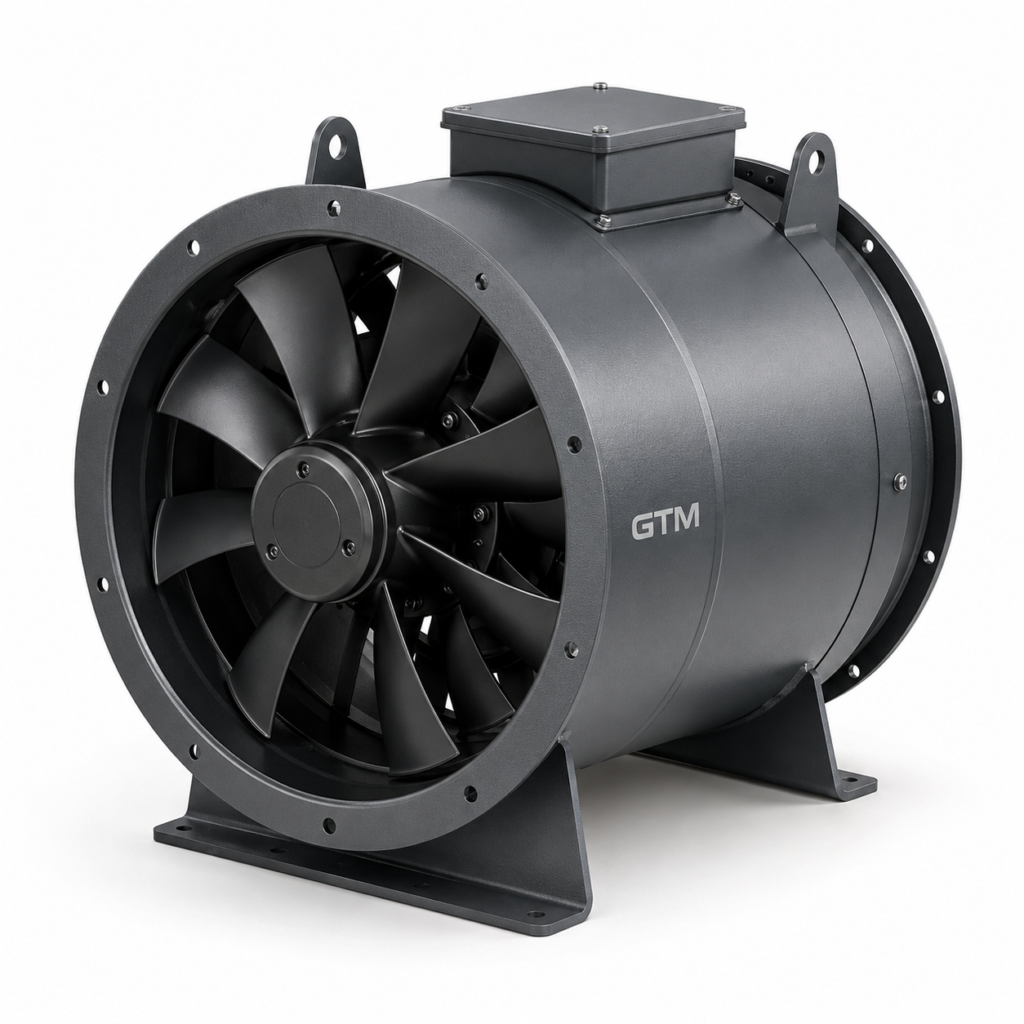

GTM AXC Series Counter-Rotating Axial Fan
Two-stage counter-rotating axial fan for high-pressure duct ventilation. Sizes 315–1000 mm with compact inline installation.
| Brand | GTM - German Technology Motors |
| Size_Range | 315-1000 mm |
| Stages | Counter-rotating two-stage |
| Pressure_Class | High pressure axial |
Performance Data
Technical Specifications
| Model Size | Diameter (Ø mm) | Max Airflow (m³/h) | Max Pressure (Pa) | Sound Power (dB(A)) |
|---|---|---|---|---|
| GTM-AXC-315 | 315 | 5,200 | 320 | 72 |
| GTM-AXC-355 | 355 | 7,000 | 380 | 75 |
| GTM-AXC-400 | 400 | 9,600 | 450 | 78 |
| GTM-AXC-450 | 450 | 13,200 | 520 | 81 |
| GTM-AXC-500 | 500 | 18,000 | 610 | 84 |
| GTM-AXC-560 | 560 | 24,500 | 720 | 87 |
| GTM-AXC-630 | 630 | 34,000 | 850 | 90 |
| GTM-AXC-710 | 710 | 47,000 | 980 | 93 |
| GTM-AXC-800 | 800 | 63,000 | 1,150 | 96 |
| GTM-AXC-1000 | 1,000 | 98,000 | 1,450 | 101 |
* Values are nominal and subject to manufacturing tolerances. Consult GTM technical support for specific duty points or operating conditions.
Where It’s Used
Key Applications
Used when a normal axial fan has insufficient pressure but inline airflow direction must be maintained.
CAR PARKS
TUNNELS
LONG DUCT RUNS
