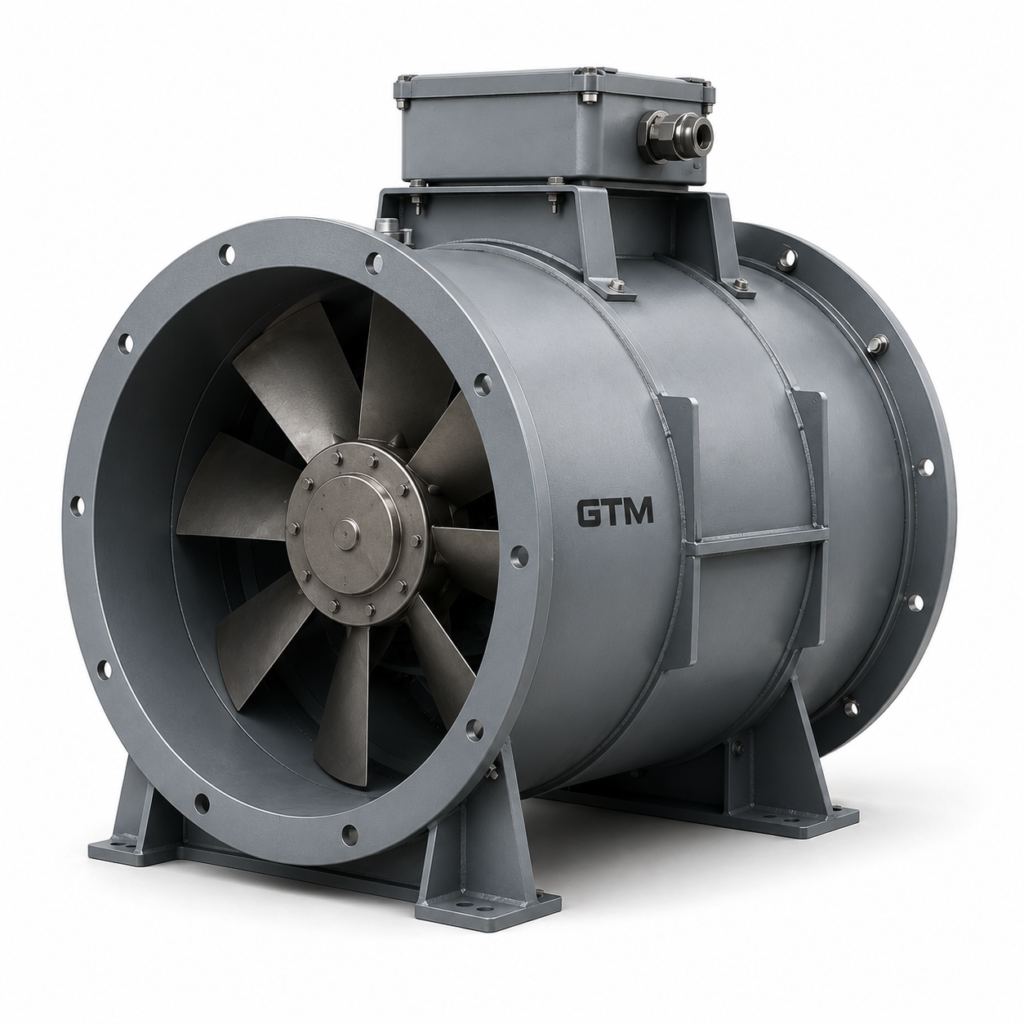

GTM AXH Series High Temperature Smoke Extract Axial Fan
High-temperature axial smoke extract fan for car parks, tunnels and emergency ventilation. Sizes 400–1250 mm, F300/F400 duty options.
| Brand | GTM - German Technology Motors |
| Size_Range | 400-1250 mm |
| Duty | F300/F400 smoke extract option |
| Motor | High-temperature IEC motor |
Performance Data
Technical Specifications
| Model Size | Diameter (Ø mm) | Max Airflow (m³/h) | Max Pressure (Pa) | Sound Power (dB(A)) |
|---|---|---|---|---|
| GTM-AXH-400 | 400 | 6,500 | 180 | 69 |
| GTM-AXH-500 | 500 | 12,000 | 230 | 73 |
| GTM-AXH-560 | 560 | 16,500 | 270 | 76 |
| GTM-AXH-630 | 630 | 23,000 | 320 | 80 |
| GTM-AXH-710 | 710 | 33,000 | 380 | 83 |
| GTM-AXH-800 | 800 | 46,500 | 450 | 86 |
| GTM-AXH-900 | 900 | 62,000 | 530 | 89 |
| GTM-AXH-1000 | 1,000 | 81,000 | 610 | 92 |
| GTM-AXH-1250 | 1,250 | 126,000 | 780 | 97 |
* Values are nominal and subject to manufacturing tolerances. Consult GTM technical support for specific duty points or operating conditions.
Where It’s Used
Key Applications
Engineered for smoke control, hot air exhaust and emergency ventilation systems requiring certified high-temperature duty.
SMOKE EXTRACT
CAR PARKS
TUNNELS
INDUSTRIAL SAFETY
