Industrial Ventilators

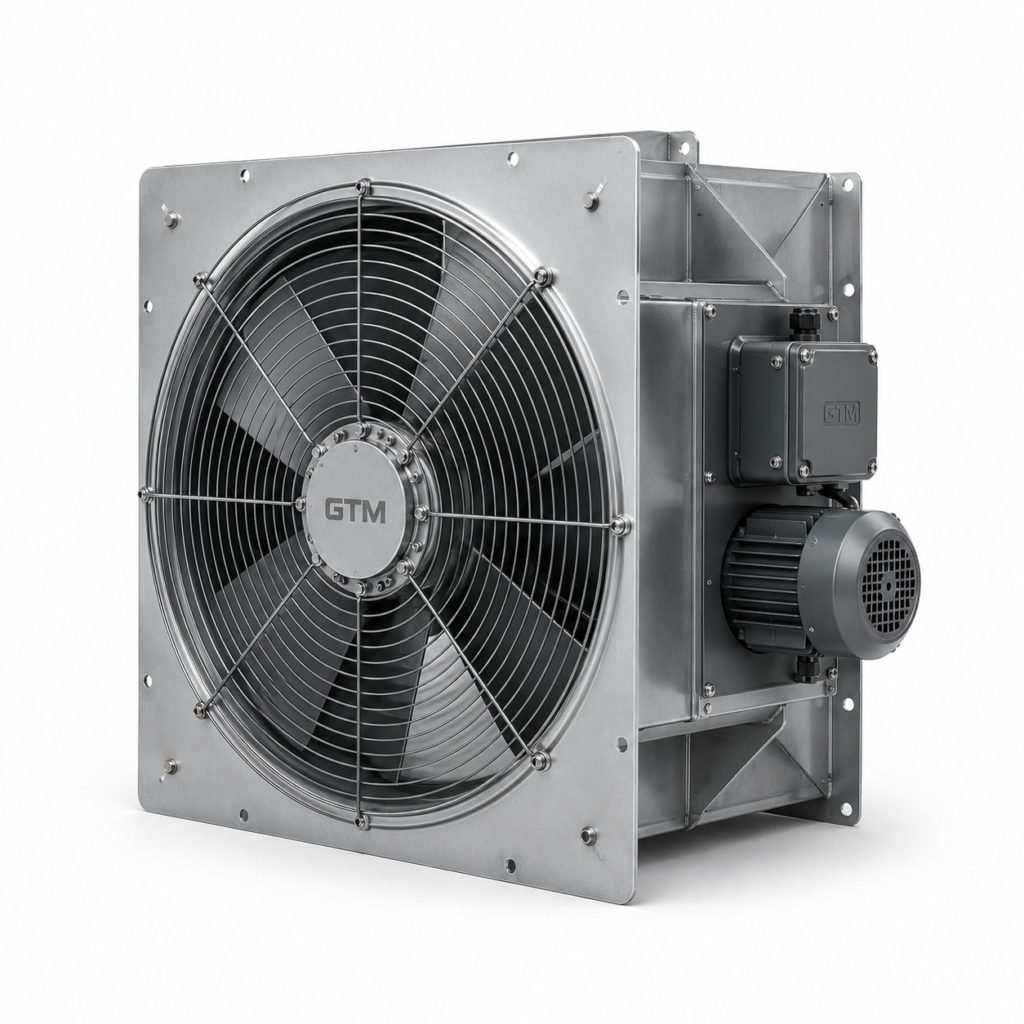

GTM GAT Series ATEX Explosion-Proof Industrial Fan
Explosion-proof industrial fan for hazardous area extraction, chemical stores and battery rooms. Sizes 315–1000 mm.
| Brand | GTM - German Technology Motors |
| Size_Range | 315-1000 mm |
| Safety | Explosion-proof / spark-resistant |
| Duty | Hazardous area exhaust |
Performance Data
Technical Specifications
| Model Size | Diameter (Ø mm) | Max Airflow (m³/h) | Max Pressure (Pa) | Sound Power (dB(A)) |
|---|---|---|---|---|
| GTM-GAT-315 | 315 | 3,200 | 520 | 66 |
| GTM-GAT-355 | 355 | 4,700 | 650 | 70 |
| GTM-GAT-400 | 400 | 6,800 | 800 | 74 |
| GTM-GAT-450 | 450 | 9,500 | 980 | 78 |
| GTM-GAT-500 | 500 | 12,800 | 1,150 | 81 |
| GTM-GAT-560 | 560 | 17,500 | 1,380 | 84 |
| GTM-GAT-630 | 630 | 24,000 | 1,650 | 88 |
| GTM-GAT-710 | 710 | 33,000 | 1,950 | 92 |
| GTM-GAT-800 | 800 | 44,500 | 2,300 | 96 |
| GTM-GAT-1000 | 1,000 | 71,000 | 3,100 | 102 |
* Values are nominal and subject to manufacturing tolerances. Consult GTM technical support for specific duty points or operating conditions.
Where It’s Used
Key Applications
For ventilation projects where potentially explosive atmospheres require ATEX-style construction and safety-focused components.
HAZARDOUS AREAS
CHEMICAL STORAGE
BATTERY ROOMS
