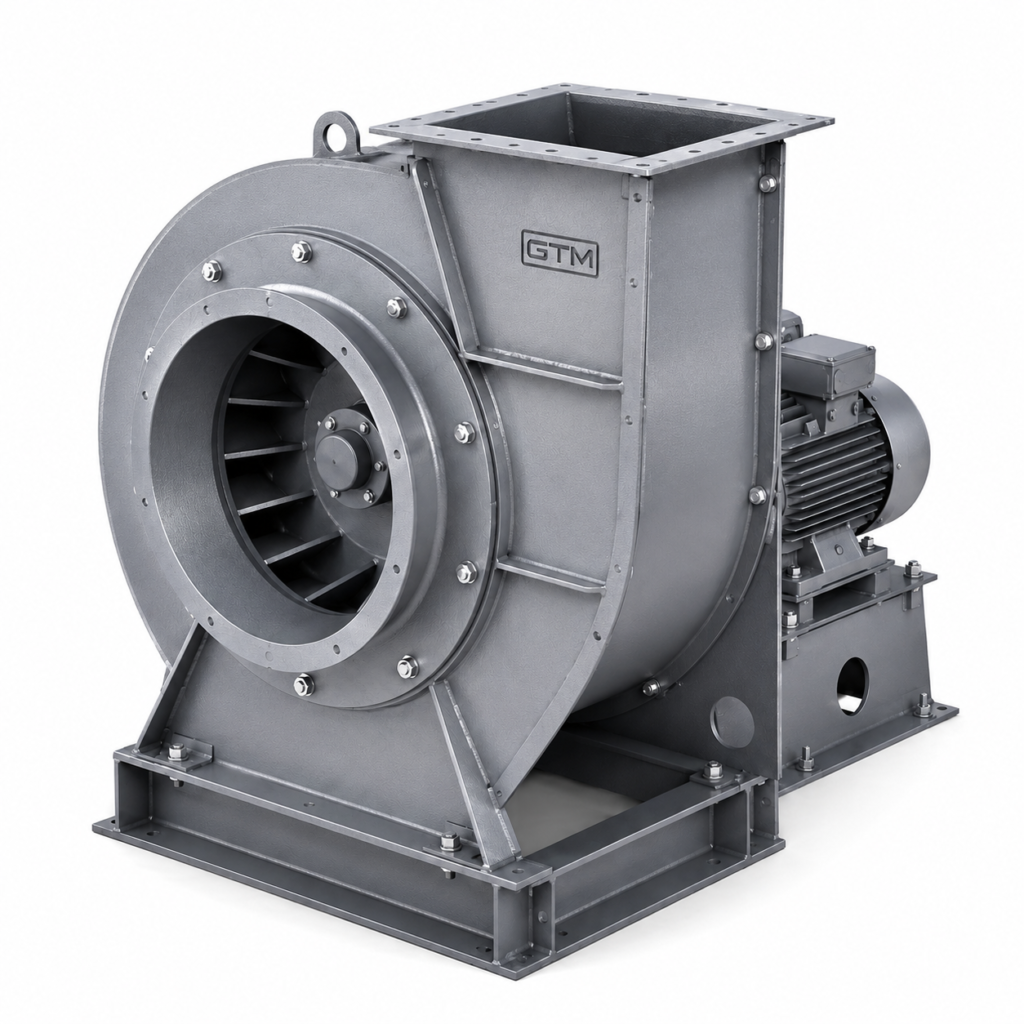

GTM GHB Series High Pressure Industrial Blower
High-pressure centrifugal blower for industrial exhaust, process air and filtration systems. Sizes 180–710 mm.
| Brand | GTM - German Technology Motors |
| Size_Range | 180-710 mm |
| Pressure_Class | High pressure |
| Drive | Direct or belt drive |
Performance Data
Technical Specifications
| Model Size | Diameter (Ø mm) | Max Airflow (m³/h) | Max Pressure (Pa) | Sound Power (dB(A)) |
|---|---|---|---|---|
| GTM-GHB-180 | 180 | 950 | 950 | 69 |
| GTM-GHB-200 | 200 | 1,350 | 1,250 | 72 |
| GTM-GHB-225 | 225 | 1,850 | 1,550 | 75 |
| GTM-GHB-250 | 250 | 2,600 | 1,900 | 78 |
| GTM-GHB-280 | 280 | 3,650 | 2,300 | 81 |
| GTM-GHB-315 | 315 | 5,200 | 2,850 | 84 |
| GTM-GHB-355 | 355 | 7,400 | 3,400 | 87 |
| GTM-GHB-400 | 400 | 10,200 | 4,100 | 90 |
| GTM-GHB-450 | 450 | 14,000 | 4,900 | 93 |
| GTM-GHB-500 | 500 | 19,000 | 5,800 | 96 |
| GTM-GHB-560 | 560 | 26,000 | 6,800 | 100 |
| GTM-GHB-630 | 630 | 35,000 | 7,800 | 103 |
| GTM-GHB-710 | 710 | 47,000 | 9,000 | 106 |
* Values are nominal and subject to manufacturing tolerances. Consult GTM technical support for specific duty points or operating conditions.
Where It’s Used
Key Applications
For systems with filters, scrubbers, long duct runs or industrial equipment requiring high static pressure.
DUST COLLECTION
PROCESS AIR
FILTRATION SYSTEMS
