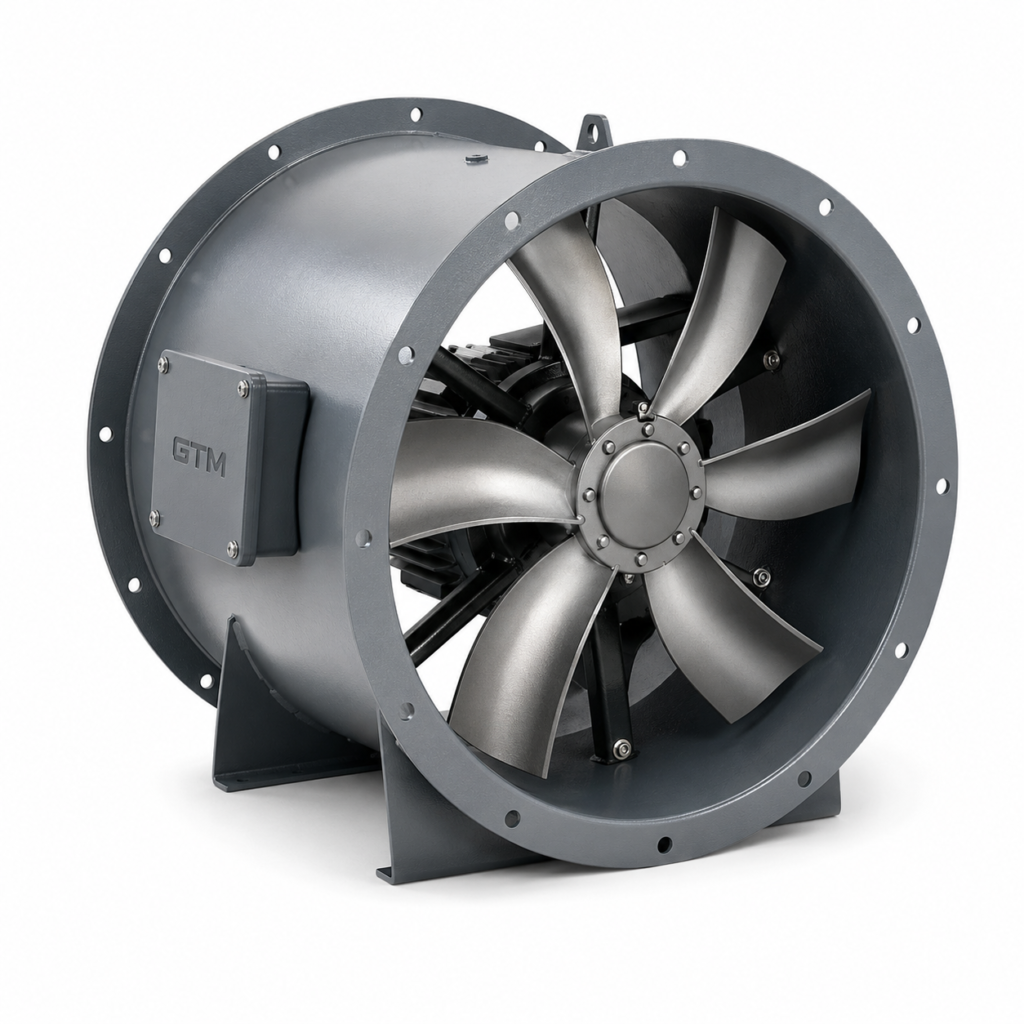

GTM GIV Series Heavy-Duty Industrial Ventilator
Robust industrial ventilator for high-volume extraction in factories, workshops and process areas. Sizes 400–1250 mm.
| Brand | GTM - German Technology Motors |
| Size_Range | 400-1250 mm |
| Casing | Heavy-duty welded steel |
| Motor | Continuous-duty IEC motor |
Performance Data
Technical Specifications
| Model Size | Diameter (Ø mm) | Max Airflow (m³/h) | Max Pressure (Pa) | Sound Power (dB(A)) |
|---|---|---|---|---|
| GTM-GIV-400 | 400 | 4,800 | 180 | 68 |
| GTM-GIV-450 | 450 | 6,200 | 210 | 70 |
| GTM-GIV-560 | 560 | 11,500 | 280 | 74 |
| GTM-GIV-630 | 630 | 15,500 | 320 | 76 |
| GTM-GIV-710 | 710 | 22,000 | 360 | 78 |
| GTM-GIV-800 | 800 | 30,000 | 420 | 81 |
| GTM-GIV-900 | 900 | 39,000 | 470 | 83 |
| GTM-GIV-1000 | 1,000 | 50,000 | 520 | 85 |
| GTM-GIV-1120 | 1,120 | 65,000 | 580 | 88 |
| GTM-GIV-1250 | 1,250 | 82,000 | 690 | 92 |
* Values are nominal and subject to manufacturing tolerances. Consult GTM technical support for specific duty points or operating conditions.
Where It’s Used
Key Applications
Designed for reliable air extraction from production halls, heat zones, welding areas and general industrial ventilation systems.
INDUSTRIAL VENTILATION
FACTORIES
WAREHOUSES
PROCESS EXHAUST
